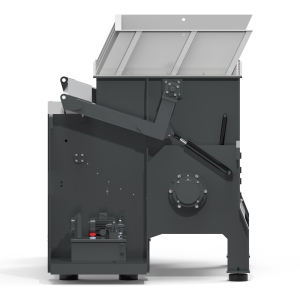

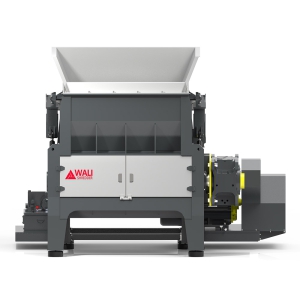

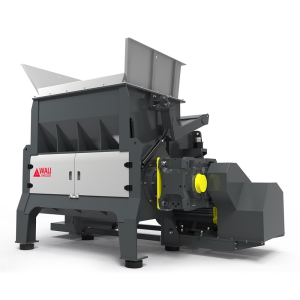

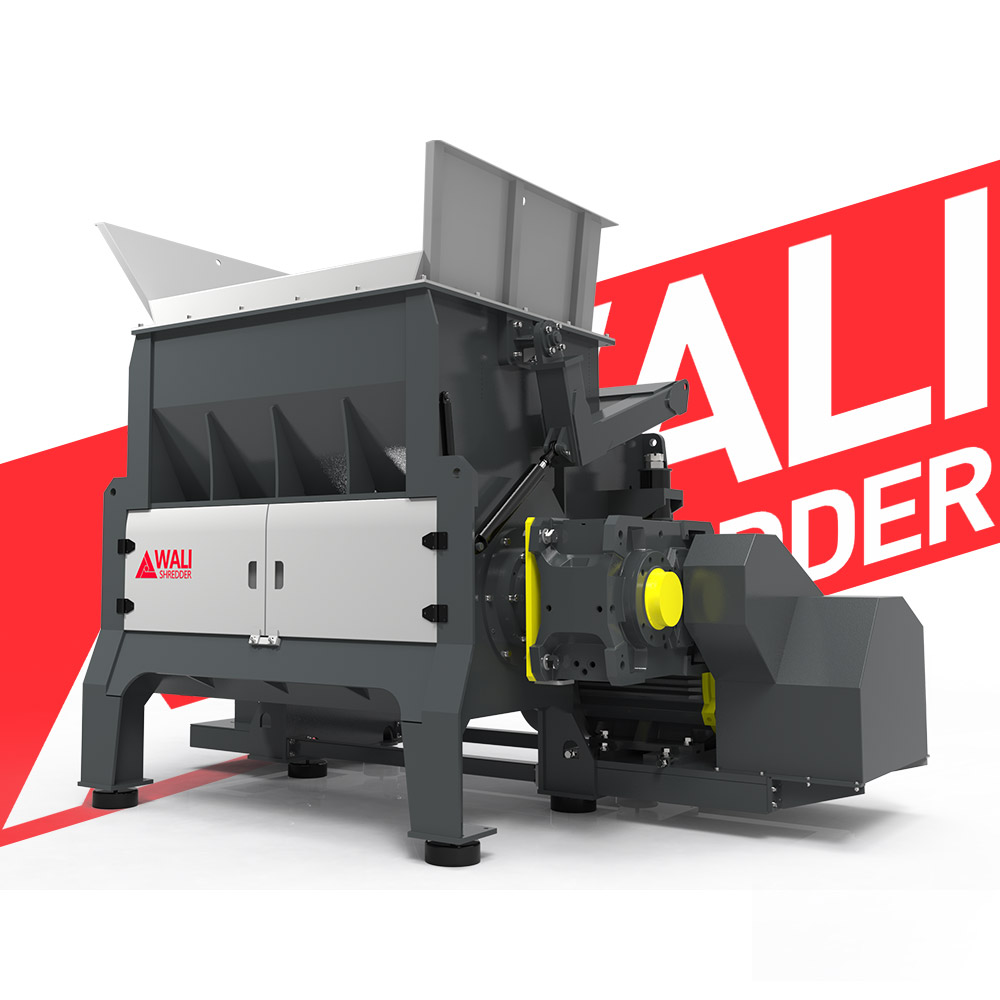

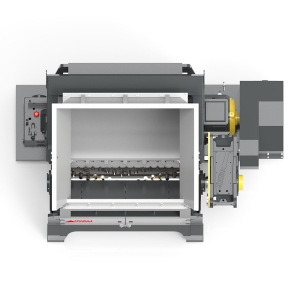

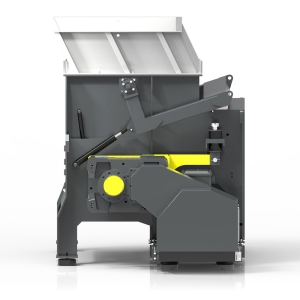

WLDX1500

Typical Applications Include:

Plastics – Mouldings, Purging/Lump, Profiles, Films etc.
Timber/Wood – Pallets, Joiners Waste, Green Waste etc.
Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
Copper– Household, Automotive, Telecoms and Industrial Cables including S.W.A
Aluminum – Used Beverage Cans (UBC’s), Swarf, Cables etc.
Textiles – Carpet (Rolls & Tiles), Garments etc.
Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock etc.
Foam – Production Waste, Insulation Materials, Product Fillings etc.

Application丨Material

Plastic : General purpose plastics such as injection molding, extrusion, film, etc.	Timber : Wood pallet, Wood scraps, etc.
Paper : Document paper, wrapping paper, cardboard, etc.	Cable : Copper core, aluminum core cable and composite cable, etc.
Aluminum : Zip-top can, Aluminum scrap, etc.	Textiles : Carpet (Rolls &Tiles), Garments, etc.
Composite materials : Fiberglass products, automobile windshield, sealing tape, etc;	Safe destruction product : Imitation products(fake products), substandard products, expired items, etc.

破碎视频丨Video

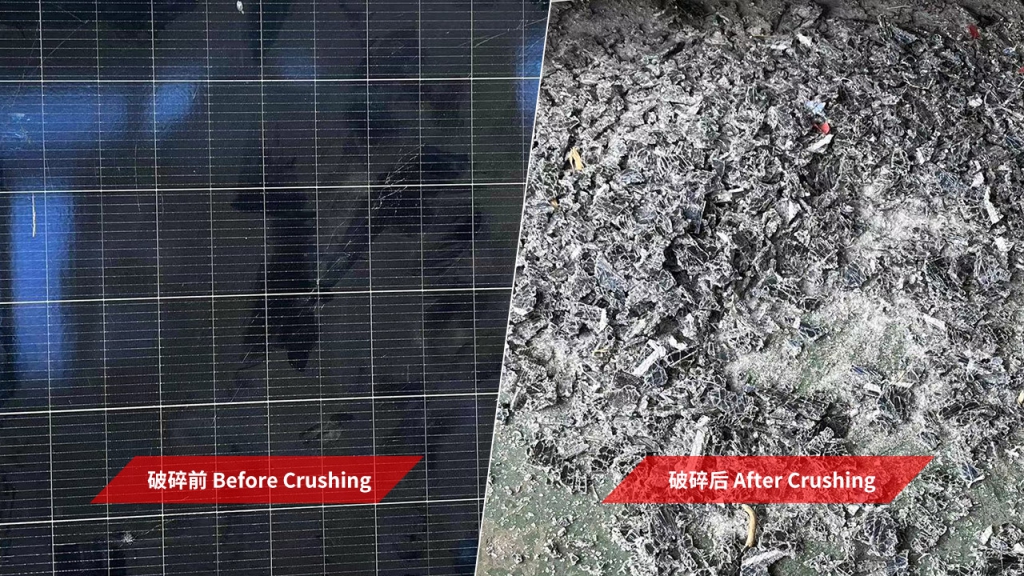

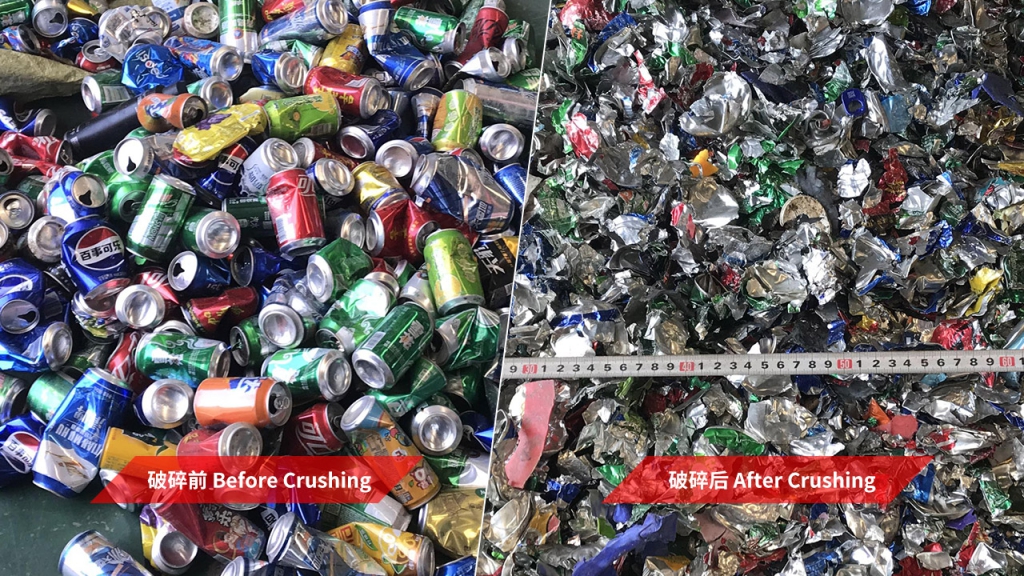

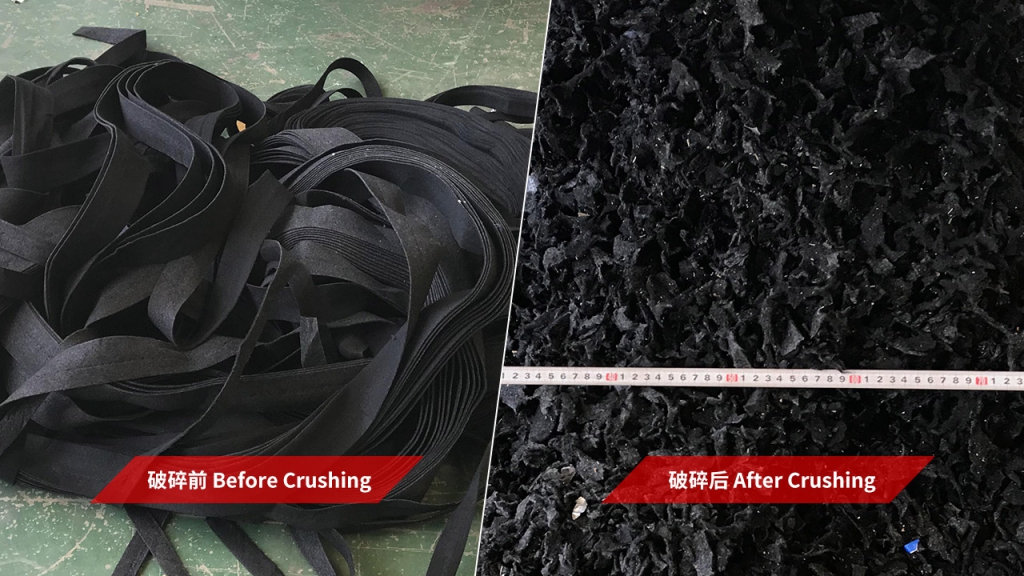

破碎对比丨Contrast

设备特点丨Feature

+ Driven by motor and reducer, High transfer power and operate steadily.	+Incline pusher is driven by hydraulic pressure, high efficiency pushing, reducing no-load loss. The incline design allows materials to fall directly into the crushing chamber.
+ PLC control system is equipped with Siemens LCD screen; real time monitoring, abnormal alarm,remote diagnosis, data analysis, intelligent operation and maintenance.	+ Curved access door is driven by hydraulic device, quick and convenient to open, saving time for maintenance.
+ Sieve is one button to open; adjust the size of output only need to replace the sieve, convenient and low cost.	+ Installing shock absorbers to make them shred smoothly.

设备参数丨Parameter

Model	Power(kw)	Rotation Diameter (mm)	Rotate Speed (rpm)	Machine Dimension (mm)
WLDX1500	110+11	480	80	221036002700
WLDX2000	75+75+11	480	80	222046002700
WLDX3000	160+160+11	800	80	260052004500

The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request.
